JZ-B1700-MINI is a compact high temperature muffle furnace designed for max energy saving ( <1Kw at 10C/min). It is an ideal tool for materials annealing and sintering in research laboratory or dental lab.
Technical Data:
| Type | MF-1100C | MF-1200C | MF-1400C | MF-1600C | MF-1700C | MF-1800C |
| Max Temperature | 1100ºC | 1200ºC | 1400ºC | 1600ºC | 1700ºC | 1800ºC |
| Working Temperature | ≤1000ºC | ≤1100ºC | ≤1300ºC | ≤1500ºC | ≤1600ºC | ≤1650ºC |
| Voltage | AC:220V 50/60HZ | |||||
| Temperature Accuracy | ±1ºC | |||||
| Heat Rate | 0~10°C / min | |||||
| Temperature control | * 30 programmable segments for precise control of heating rate , cooling rate and dwell time * Built in PID auto tune function with overheating&broken thermocouple broken protection and over temperature protection * Alarm allows for operation without attendants | |||||
| Thermocouple | K Type | K Type | S Type | B Type | B Type | B Type |
| Heating Elements | HRE wire | HRE wire | SIC heater | MoSi2 heater | MoSi2 heater | MoSi2 heater |
| Standard Chamber Size (D×W×H) | 100X100X100mm (1L) 130X120X100mm(1.5L) 150X150X150mm(3.4L) 250X300X250mm( 18L) 300X200X200mm(12L) 300x500x300mm(45) 400X300X300mm(36L) 400X400X400mm(64L) | |||||
Our company:

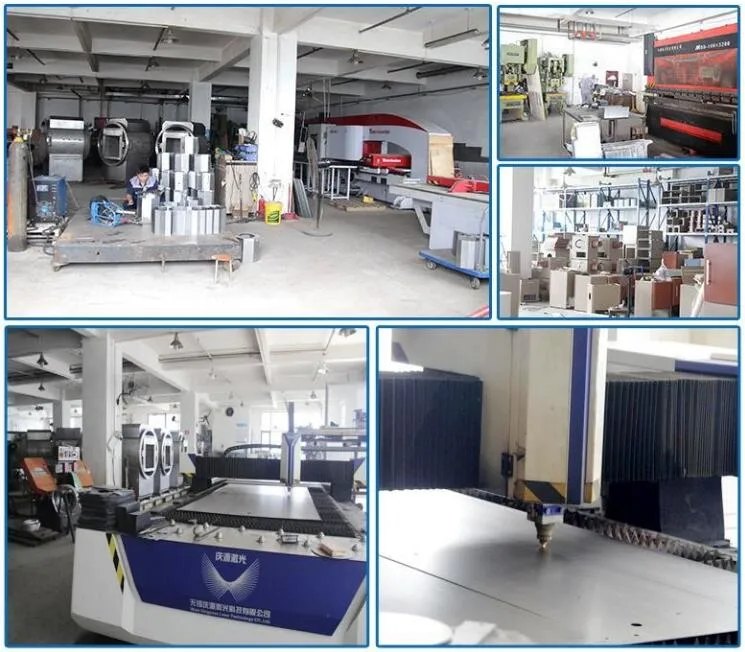

Henan Synthe Corporation has been developing, improving, and finishing high temperature furnaces and refractory products for almost 10 years. Today, We are engaged in the manufacture of high-temperature muffle furnaces, tube furnaces, vacuum furnaces and ceramic fiber products.
We also offer furnace spare parts, such as complete SiC and MoSi2 heating elements, Alumina crucibles. Many of our products have been developed for specific purposes with unique designs. We offer extensive research and development. Our highly qualified staff of engineers, scientists, technicians, and plant personnel, will work with you to produce a cost effective, superior product to meet your refractory needs. Synthe takes pride in our commitment to operational excellence. We have the drive, knowledge and ability to meet our customer's specific and demanding needs for their everyday usage. We will work with you to get things done!
FAQ:
1.Is your company accepting customization?
We have own factory and excellent technical team, and we accept OEM service.
2.How to install the furnace? If the furnace need repair after the sales.
Our company can train how to install the furnace. If you need, our technic worker can install and repair in overseas.
3.How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
4. What is the delivery time?
10-25 days after receiving deposit
If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delievey time is about 10-25days.
5. What's your regular practice concerning terms of payment?
A: Payment terms :T/T 30%-50% deposit after order confirm ,the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
