Product Description

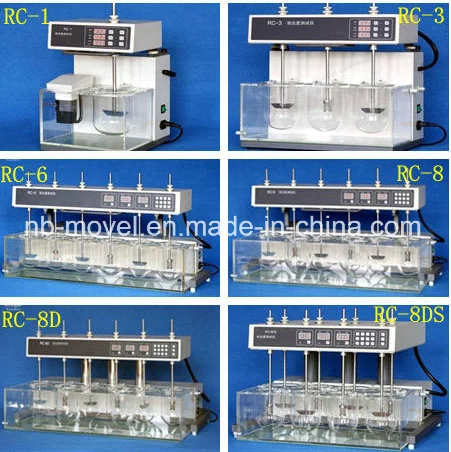

RC-1/3/6/6D/8/8d/8ds Dissolution Tester, Drug Testing Machine Series
RC-6 DISSOLUTION TESTER
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0187-2010
Features:
It has six vessels and six poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetismpumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of'Chinese codex 2000'are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Specifications:
RC-1/3/6/6D/8/8d/8ds Dissolution Tester, Drug Testing Machine Series
RC-6 DISSOLUTION TESTER
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard( Chinese codex ) /2010
Corporate standard(Dissolution tester )Q/12XQ0187-2010
Features:
It has six vessels and six poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetismpumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of'Chinese codex 2000'are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Specifications:
| Speed range (20~200)rpm Speed accuracy ±2rpm Temperature range ambient to +45.0ºC Temperature Stability ±0.3ºC Preset timing nine points (1~999)min Time accuracy ±0.5mm Paddle radial run-out ±0.5mm Basket radial run-out ±1.0mm Power 220V/50Hz/1200W or 110V/60Hz/1200W Dimension (960*320*480)mm |
