Small Mini Home Lab Vacuum Food Freeze Dryer

Product DescriptionVacuum freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc. Goods are easier for long-term preservation after freezing-drying processing, they can be restored to the original state and maintain its chemical and biological characteristics after being w

Featured Products

Product Description

Vacuum freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc. Goods are easier for long-term preservation after freezing-drying processing, they can be restored to the original state and maintain its chemical and biological characteristics after being watered. Types : A : standard type ,B: top press type, C: manifold type , D: manifold with top press type, E :T-type

Small Mini Home Laboratory Vacuum Food Freeze DryerSmall Mini Home Laboratory Vacuum Food Freeze Dryer
Spr

Product Parameters

Model
Unit
TOPT-10
TOPT-12
TOPT-18
Specification

Top-press
10B / 10D
Ordinary
10A /10C
Top-press
12B / 12D
Ordinar
12A /12C
Top-press
18B / 8D
Ordinary
18A /18C
Freeze-drying area
m2
0.08
0.12
0.08
0.12
0.09
0.18
0.27
Cold trap temp
ºC
<-55 (no load)
Vacuum degree
Pa
<10 (no load)
Water-capture capability
Kg/24h
3~4
3~4
6
Material tray
mm
¢180*3
¢200*4
¢180*3
¢200*4
¢200*3
¢200*4
¢200*6
Power
W
970
1070
1400
Dimension
mm
565*420*(360+430)
560*460*(710+430)
635*540*(970+430)
Material volume put in device (10mm)

L

0.8

1.2

0.8

1.2

0.9

1.8

2.7
¢12mm penicillin bottle

Pcs

560

920

560

920

990

1320

1980
¢16mm penicillin bottle

Pcs

285

480

285

480

555

740

1110
¢22mm penicillin bottle

Pcs

165

260

165

260

270

360

540
Eggplant shaped bottle
100ml/250ml/500ml/1000ml
10D/ 10C have
10A/10B no
12D/ 12C have
12A/12B no
18D/ 18C have
18A/18B no
Note:
There are the homologous products's parameters , you can refer to this table to choose the suitable product for you.

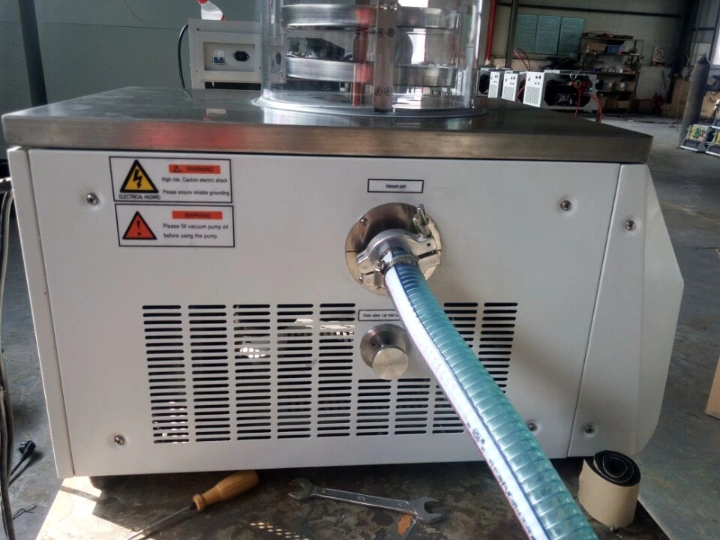

Detailed Photos

1. Freeze dried goods are easier for long-term preservation after freezing-drying processing, they can be restored to the original state and maintain its chemical and biological characteristics after being watered.

2. LCD touch screen as human-computer interface, Chinese (English) convertible interface, display drying curve.

3. TOPT-10 series freeze drying machine can store freeze-dried data for many times,experimental data can be output by a USB flash disk. Very convenient to store data and to do data analysis.

4. This vacuum freeze dryer condenser and operation panel are all stainless steel, corrosion resistant and easy to clean.

5.Ordinary model is 4 layer ,we support to customize six layer

Small Mini Home Laboratory Vacuum Food Freeze Dryer
Small Mini Home Laboratory Vacuum Food Freeze DryerSmall Mini Home Laboratory Vacuum Food Freeze DryerSmall Mini Home Laboratory Vacuum Food Freeze DryerSmall Mini Home Laboratory Vacuum Food Freeze DryerSmall Mini Home Laboratory Vacuum Food Freeze Dryer

Packaging & Shipping

Packaging
-Export wooden case
-Both neutral and customized packaging are available.
Shipping
-Usually, we ship the goods by International Express such as DHL, TNT, EMS, FedEx and UPS for small volume goods, and ship the big volume goods by air or ocean.

Small Mini Home Laboratory Vacuum Food Freeze DryerSmall Mini Home Laboratory Vacuum Food Freeze Dryer
